MLT PX-10


MLT PX-10

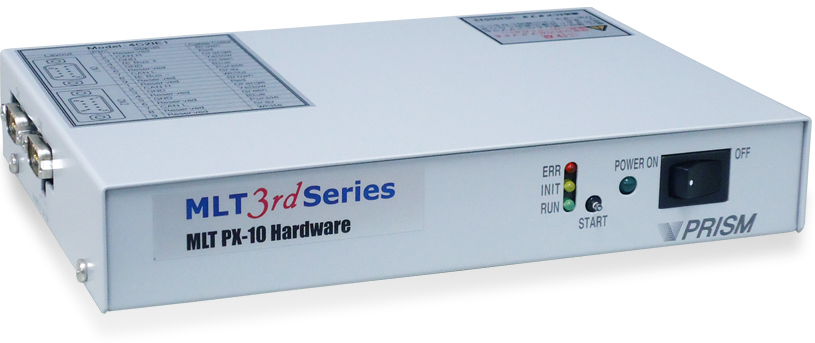

MLT PX-10 is the hardware tool that does not disturb the actual communication and performs monitoring and logging of supported protocol communication and input / output signals on the same time axis.

The timestamp accuracy is 1us. For port input, it can be improved to 10ns. Special software MLT PX-10 Navigator is included.

[ Supported protocol ]
CAN,LIN,ISO,IE Bus,I2C,UART,Ethernet,CXPI and more…

Interface

InterfaceInterface

Main functions

MLT PX-10 Navigator

Using the included special software MLT PX-10 Navigator, communication contents can be checked and analyzed.

Equipping with various interfaces

In addition to CAN, LIN, ISO, IE Bus, I2C, UART, Ethernet, CXPI, customizing a configuration.

Port inputs / port outputs has been equipped with 8 channels each.

It is possible to logging port Inputs/port outputs data simultaneously with each protocol communication data. Also support for the trigger setting function to execute a trigger instruction when pattern matching frame is sent or received.

Other functions

Corresponding to the user module function and standalone operation. Please see the product catalog for details.

Special software for MLT PX-10 Hardware

Equipped with powerful filter function and the frame database function.

This is the software that controls MLT PX-10 hardware and generates log files. Running on windows and performs logging, testing, and simulation. In standalone operation mode, make necessary settings for standalone operation.

Contents of product

MLT PX-10 Hardware
1 unit
MLT PX-10 Installation CD
1 sheet
AC adaptor
1 piece
USB cable
1 cable
Network connection cable
The number of cables required.(depends on the hardware model)
Analog input cable
1 cable
Port inputs cable
1 cable
Port outputs cable
1 cable
MLT PX-10

Software operation environment

PC/OS
Windows 7 or Windows 10 PC (recommended CPU: 2 or more core 32-bit or 64-bit processor)
* Not guarantee operation with windows XP.
Main memory
1GiB or more (In case of 64bit, 2GiB or more are recommended.)
Display
Resolution of 1366×768 or higher is recommended. 256 colors or higher(high color is recommended)
HDD free space
60MiB or more
Device
USB port, CD-ROM drive, Pointing device(mouse, touchpad etc.)
Others
PDF browsing software
■Licensing Policy
The MLT PX-10 Navigator which can be used simultaneously per one product comes with one license.
However, if it is not being used simultaneously, the MLT PX-10 Navigator can be installed on any number of PCs you have.
Therefore, there is no mechanism such as license locking.
When more than one person intends to use the MLT PX-10 Navigator simultaneously to analyze communication logs, etc., please purchase a separate license for the necessary number of PCs.

Supported protocols

Current model ( port Inputs/ port outputs: 8 channel version)
Model CAN LIN ISO 14230 IE Bus I2C SRTERM SRDUMP Ethernet CXPI
4C1CX1 1 1
4C1IE1 1 1
4C1IS1 1 1
4C1L1 1 1
4C1L1CX1 1 1 1
4C1L1IC1 1 1 1
4C1L1IE1 1 1 1
4C1L1IS1 1 1 1
4C1L2 1 2
4C2 2
4C2CX2 2 2
4C2E2 2 1
4C2IC1 2 1
4C2IE1 2 1
4C2IS1 2 1
4C2L1 2 1
4C2L1IS1 2 1 1
4C2L2 2 2
4C2L2E2 2 2 1
4C2L2IE1 2 2 1
4C2L2IS1 2 2 1
4C2SD4 2 X 4-X
4CX2 2
4E2 1
4IC1 1
4IE1 1
4IE1IC1 1 1
4IE1IC1SD4 1 1 X 4-X
4L1CX1 1 1
4L1IS1 1 1
4L2 2
4L2IS1 2 1
4SD4 X 4-X

* Each number indicates the number of corresponding channels(A blank indicate non-correspondence ). X is 0 to 4 (depending on the setting).

* The CAN corresponding model does not support Low CAN and Single Wire CAN. (When correspondence is necessary, choosed from “Port inputs / outputs 4 channel version”).

* Models with different combinations of supported protocols can also be produced. However, we may not be able to produce it, so please contact us for details.

* For models that are not listed in this table, we may get some time to deliver.

Initial model (port Inputs/ port outputs: 4 channel version)
Model CAN LIN ISO 14230 IE Bus I2C SRTERM SRDUMP Ethernet CXPI
C1IE1 1 1
C1IS1 1 1
C1L1 1 1
C1L2 1 2
C2 2
C2IS1 2 1
C2L1 2 1
C2L2 2 2
C2L2IS1 2 2 1
IC1 1
IE1 1
IE1IC1 1 1

* The initial model is a product for customers who purchase the same model as the one you purchased before. Please select from this list even if it is necessary to correspond to Low CAN or Single Wire CAN by new purchase.

* Each number represents the number of corresponding channels (blank indicates non-correspondence).

* The CAN corresponding model of “Port inputs / outputs 4 channel version” corresponds to High CAN, Low CAN and Single Wire CAN. However, when using Single Wire CAN, purchase optional board sold separately.

* When considering purchasing the same model again, you can also select the equivalent model from the “port inputs / outputs 8 channel version” of the current model. (The same model of supported protocols is the successor version of the initial model.)

Hardware Specifications

Current model ( port Inputs/ port outputs: 8 channel version)
External input port inputs(8 channels) / analog inputs(8 channels)
External output port outputs(8 channels) / controller input and output(1 channel)
Input voltage DC5V
Current consumption 290mA – 410mA (depends on the hardware model)
AC adaptor Input: AC 100 – 240V, 50 – 60Hz, 0.3A / Output: DC 5V, 2.3A
Operating temperature 5°C – 40°C (no condensation)
Storage temperature -40°C – 65°C
Outer dimensions 201mm(width) × 36mm(height) × 138mm(depth)
Main body weight Approx. 390g – 440g (depends on the hardware model)
Initial model (port Inputs/ port outputs: 4 channel version)
External input port inputs(4 channels) / analog inputs(8 channels)
External output port outputs(4 channels) / controller input and output(1 channel)
Input voltage DC5V
Current consumption 550 mA – 600mA (depends on the hardware model)
AC adaptor Input: AC 100 – 240V, 50 – 60Hz, 0.3A / Output: DC 5V, 2.3A
Operating temperature 5°C – 40°C (no condensation)
Storage temperature -40°C – 65°C
Outer dimensions 201mm(width) × 36mm(height) × 138mm(depth)
Main body weight Approx. 390g – 440g (depends on the hardware model)
PRISM Corp.

Product customization is possible. Please inquire in detail.
